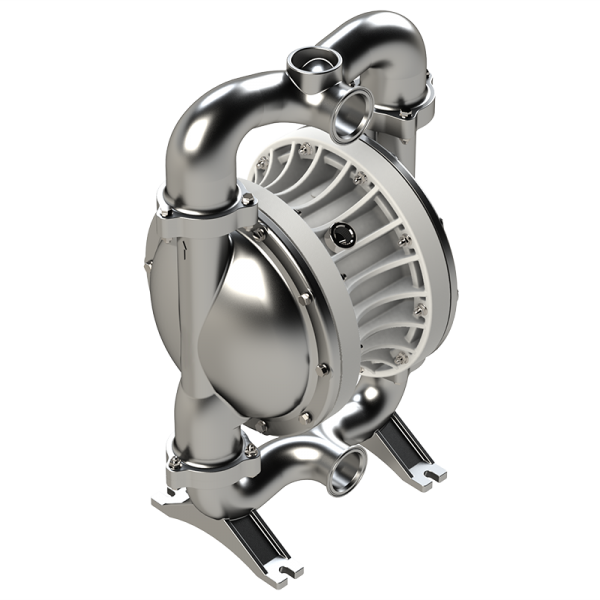

Double diaphragm pump AODD model 2” PURE

for the food and pharmaceutical sector

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 5254-410
  • A 478 | B 694 | C 346
  • Contrary to the illustration, the outlet connection is delivered rotated by 180°.
Description: The double diaphragm pump is suitable for the food and pharmaceutical... mehr
Produktinformationen zu "Double diaphragm pump AODD model 2” PURE"

Material: Stainless steel (electropolished)
Material of diaphragm / check balls / seals: TPV (EPDM-PP) + TFM (PTFE) / PTFE / PTFE
Centre block material: Aluminium (food paintwork)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound


Description:

The double diaphragm pump is suitable for the food and pharmaceutical industry as well as for large flow rates and higher viscosities.

  • typical applications: liquid foodstuffs and semi-luxury food, pharmaceutical substances and cosmetic products
  • FDA-compliant

Features & Benefits

  • high hydraulic performance
  • maintenance-optimised design and simple installation
  • self-priming (even when dry)
  • ice-free air system
  • non-stalling operation
  • food-safe connections
技术数据
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Doppelmembranpumpen (Werkstoff): Metall
房屋(材料): Edelstahl 1.4404 (316 L) elektropoliert
Mittelblock (Werkstoff): Aluminium (Lebensmittellackierung)
膜片(材料): TPV (EPDM-PP) + TFM (PTFE) (EPDM/PP-Compound + Modifiziertes Polytetrafluorethylen)
阀球(材料): PTFE (Polytetrafluorethylen)
密封件(材料): PTFE(聚偏二氟乙烯)
阀座(材料): 不锈钢
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
流量(最高升/分钟): 715
交付量(至mWS): 80
固体(最大ømm): 9
输送介质温度(最高℃): 100
粘度(高达mPas): 30000
Ansaughöhe trocken (bis max. mWS*): 4,5
Luftdruck (max. bar): 8
Luftdruck Anlauf (min. bar): 2
Schalldruckpegel ( in dB(A)): 80
Verdrängung pro Kammer ( in cm³): 1910
Verdrängung pro Zyklus ( in cm³): 3820
▼ PUMPE | PUMP | POMP ▼
大小: 2"
Lufteinlass (Zoll) innen: 3/4"
Druckstutzen (Zoll) innen: Tri-Clamp 2 1/2
Saugstutzen (Zoll) innen: Tri-Clamp 2 1/2
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
Anschluss: Tri-Clamp
证明: FDA-konform
类型: DMP 2" SST PURE SS/PTFE

*最大流量是在约20°C温度下用水在测试台上测量。测量在泵出口处进行,不带软管、喷枪或流量计。使用时可达到的扬程通常更低,这取决于具体应用、介质特性和泵的配置。扬程还取决于泵的设计、马达和介质情况。 粘度值是用油测定的。

** 测试集成:介质:水/柴油,正流向,流量计前后沉降0.2m
