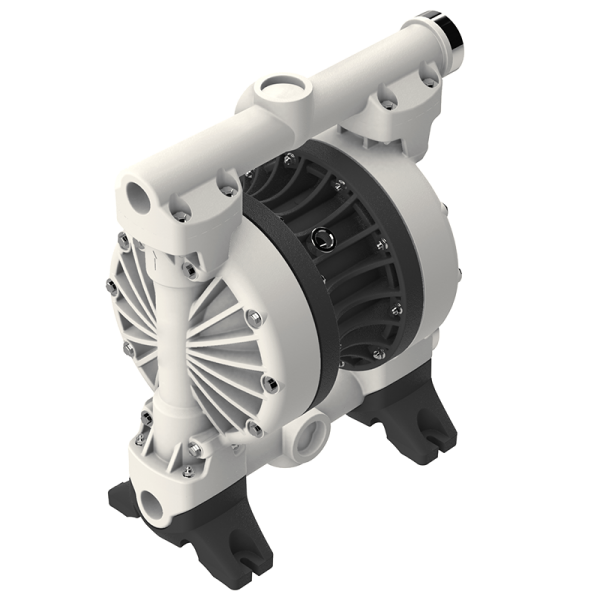

Double diaphragm pump AODD model 2” non-metallic

for plant feedings and large-scale industry

材质:

Werkstoffe: Membranen / Ventilkugeln / Dichtungen:

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 5250-200
  • A 563 | B 662.5 | C 345
  • is not suitable for the Ex-area
Description: The double diaphragm pump is suitable for large scale industry and plant... mehr
Produktinformationen zu "Double diaphragm pump AODD model 2” non-metallic"

Material: Polypropylene glass fibre reinforced (PP)
Material of diaphragm / check balls / seals: TPC-ET + TFM (PTFE) / PTFE / PTFE
Centre block material: Polypropylene glass fibre reinforced (PP)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound


Description:

The double diaphragm pump is suitable for large scale industry and plant feeding as well as for large flow rates and higher viscosities.

  • typical applications: Filter press, tank cleaning system, pigment dyes and resins
  • reinforced elastomers and thermoplastic diaphragms
  • highly resistant TFM (PTFE) diaphragms (modified PTFE)

Features & Benefits

  • high hydraulic performance
  • ice-free air system
  • maintenance-optimised design and simple installation
  • self-priming (even when dry)
  • ice-free air system
  • absolutely oil-free
  • non-stalling operation
技术数据
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Doppelmembranpumpen (Werkstoff): Kunststoff
房屋(材料): Polypropylen glasfaserverstärkt (PP)
Mittelblock (Werkstoff): Aluminium
膜片(材料): TPC-ET + TFM (PTFE) (Thermoplastisches Polyesterelastomer + Modifiziertes Polytetrafluorethylen)
阀球(材料): PTFE (Polytetrafluorethylen)
密封件(材料): PTFE(聚偏二氟乙烯)
阀座(材料): PP(聚丙烯)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
流量(最高升/分钟): 715
交付量(至mWS): 80
固体(最大ømm): 9
输送介质温度(最高℃): 60
粘度(高达mPas): 30000
Ansaughöhe trocken (bis max. mWS*): 4,5
Luftdruck (max. bar): 8
Luftdruck Anlauf (min. bar): 2
Schalldruckpegel ( in dB(A)): 80
Verdrängung pro Kammer ( in cm³): 1910
Verdrängung pro Zyklus ( in cm³): 3820
▼ PUMPE | PUMP | POMP ▼
大小: 2"
Lufteinlass (Zoll) innen: 3/4"
Druckstutzen (Zoll) innen: 2"
Saugstutzen (Zoll) innen: 2"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
防爆: Nein
Anschluss: Gewinde
类型: DMP 2" PPT PP/PTFE

*最大流量是在约20°C温度下用水在测试台上测量。测量在泵出口处进行,不带软管、喷枪或流量计。使用时可达到的扬程通常更低,这取决于具体应用、介质特性和泵的配置。扬程还取决于泵的设计、马达和介质情况。 粘度值是用油测定的。

** 测试集成:介质:水/柴油,正流向,流量计前后沉降0.2m
