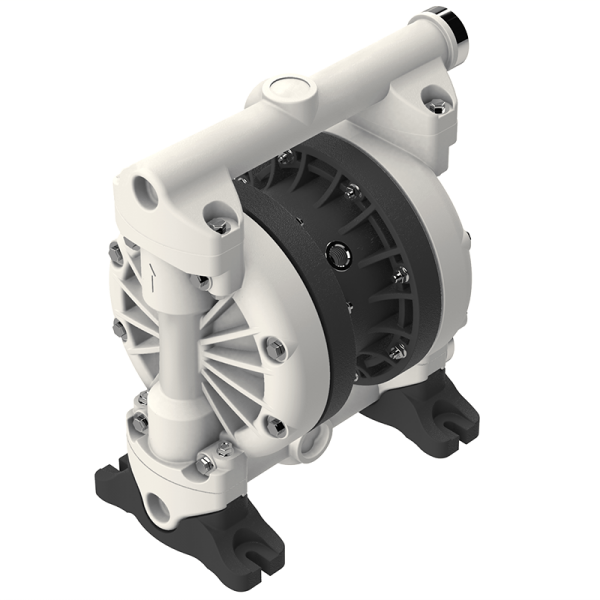

Double diaphragm pump AODD model 1” non-metallic

for industrial applications as well as for drum, IBC and tank emptying.

材质:

Werkstoffe: Membranen / Ventilkugeln / Dichtungen:

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 5230-050
  • A 309.5 | B 344.5 | C 203
  • is not suitable for the Ex-area
Description: The double diaphragm pump is suitable for industrial applications as well... mehr
Produktinformationen zu "Double diaphragm pump AODD model 1” non-metallic"

Material: Polypropylene glass fibre reinforced (PP)
Material of diaphragm / check balls / seals: FPM / FPM / FPM
Centre block material: Polypropylene glass fibre reinforced (PP)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound


Description:

The double diaphragm pump is suitable for industrial applications as well as for emptying drums, IBCs and tanks.

  • typical applications: Transfer from drums and containers, transfer of corrosive solutions and chemicals
  • reinforced elastomers and thermoplastic diaphragms
  • highly resistant TFM (PTFE) diaphragms (modified PTFE)

Features & Benefits

  • high hydraulic performance
  • maintenance-optimised design and simple installation
  • self-priming (even when dry)
  • ice-free air system
  • absolutely oil-free
  • non-stalling operation
技术数据
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Doppelmembranpumpen (Werkstoff): Kunststoff
房屋(材料): Polypropylen glasfaserverstärkt (PP)
Mittelblock (Werkstoff): Polypropylen kohlefaserverstärkt (PP)
膜片(材料): FPM(氟化橡胶)
阀球(材料): FPM(氟化橡胶)
密封件(材料): FPM(氟化橡胶)
阀座(材料): PP(聚丙烯)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
流量(最高升/分钟): 175
交付量(至mWS): 80
固体(最大ømm): 6,0
输送介质温度(最高℃): 60
粘度(高达mPas): 10000
Ansaughöhe trocken (bis max. mWS*): 4,5
Luftdruck (max. bar): 8
Luftdruck Anlauf (min. bar): 2
Schalldruckpegel ( in dB(A)): 80
Verdrängung pro Kammer ( in cm³): 220
Verdrängung pro Zyklus ( in cm³): 440
▼ PUMPE | PUMP | POMP ▼
大小: 1"
Lufteinlass (Zoll) innen: 3/8"
Druckstutzen (Zoll) innen: 1"
Saugstutzen (Zoll) innen: 1"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
防爆: Nein
Anschluss: Gewinde
类型: DMP 1" PPV PP/FPM

* Die max. Fördermenge ist ein ermittelter Wert mittels Prüfstand und gemessen mit Wasser bei einer Mediumstemperatur von ca. 20° C. Die Messung erfolgt am Druckstutzen der Pumpe, ohne Schlauch, Zapfpistole oder Durchflussmesser. Die im Einsatz erzielbare Fördermenge ist niedriger und hängt von der individuellen Anwendung, den Medieneigenschaften sowie der Konfiguration der Pumpe ab. Die max. Förderhöhe ist ebenso abhängig von Pumpenausführung, Motor und Medium. Die Viskositätswerte werden mit Öl ermittelt.

** Prüfaufbau: Medium Wasser / Diesel, Durchfluss in Vorzugsrichtung, Beruhigungsstrecke 0,2 m vor und nach dem Durchflusszähler
