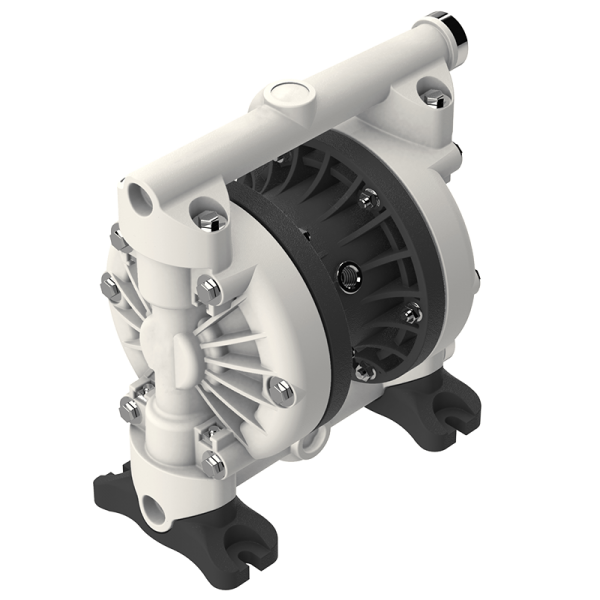

Double diaphragm pump AODD model 1/2” non-metallic

for drum, IBC and tank emptying

材质:

Werkstoffe: Membranen / Ventilkugeln / Dichtungen:

Preis anfragen

Mit * gekennzeichnete Felder sind Pflichtfelder.
  • 5220-050
  • A 243 | B 260.5 | C 160
  • is not suitable for the Ex-area
Description: The double diaphragm pump is suitable for industrial applications as well... mehr
Produktinformationen zu "Double diaphragm pump AODD model 1/2” non-metallic"

Material: Polypropylene glass fibre reinforced (PP)
Material of diaphragm / check balls / seals: FPM / FPM / FPM
Centre block material: Polypropylene glass fibre reinforced (PP)

Description of material: EPDM = ethylene propylene diene rubber, FPM = fluorine rubber,
NBR = acrylonitrile butadiene rubber, PP = polypropylene, PTFE = polytetrafluoroethylene,
TPC-ET + TFM (PTFE) = thermoplastic polyester elastomer + modified polytetrafluoroethylene,
TPV (EPDM-PP) = EPDM/PP compound


Description:

The double diaphragm pump is suitable for industrial applications as well as for emptying drums, IBCs and tanks.

  • typical applications: 200 l drums, paint circulation and feeding, feeding of chemicals, solvents, acids and liquid soap
  • reinforced elastomers and thermoplastic diaphragms
  • highly resistant TFM (PTFE) diaphragms (modified PTFE)

Features & Benefits

  • high hydraulic performance
  • maintenance-optimised design and simple installation
  • self-priming (even when dry)
  • ice-free air system
  • absolutely oil-free
  • non-stalling operation
技术数据
▼ WERKSTOFFE | MATERIAL | MATERIAAL ▼
Doppelmembranpumpen (Werkstoff): Kunststoff
房屋(材料): Polypropylen glasfaserverstärkt (PP)
Mittelblock (Werkstoff): Polypropylen kohlefaserverstärkt (PP)
膜片(材料): FPM(氟化橡胶)
阀球(材料): FPM(氟化橡胶)
密封件(材料): FPM(氟化橡胶)
阀座(材料): PP(聚丙烯)
▼ FÖRDERDATEN | OPERATING DATA | SPECIFICATIES ▼
流量(最高升/分钟): 76
交付量(至mWS): 80
固体(最大ømm): 3,2
输送介质温度(最高℃): 60
粘度(高达mPas): 7500
Ansaughöhe trocken (bis max. mWS*): 4
Luftdruck (max. bar): 8
Luftdruck Anlauf (min. bar): 2
Schalldruckpegel ( in dB(A)): 75
Verdrängung pro Kammer ( in cm³): 75
Verdrängung pro Zyklus ( in cm³): 150
▼ PUMPE | PUMP | POMP ▼
大小: 1/2"
Lufteinlass (Zoll) innen: 1/4"
Druckstutzen (Zoll) innen: 1/2"
Saugstutzen (Zoll) innen: 1/2"
▼ EIGENSCHAFTEN | PROPERTIES | EIGENSCHAPPEN ▼
防爆: Nein
Anschluss: Gewinde
证明:
类型: DMP 1/2" PPV PP/FPM

*最大流量是在约20°C温度下用水在测试台上测量。测量在泵出口处进行,不带软管、喷枪或流量计。使用时可达到的扬程通常更低,这取决于具体应用、介质特性和泵的配置。扬程还取决于泵的设计、马达和介质情况。 粘度值是用油测定的。

** 测试集成:介质:水/柴油,正流向,流量计前后沉降0.2m
